Orthomosaics, Point Clouds, and Terrain Models: A Guide to Drone Mapping Deliverables

You know you need better site data, but the quote includes terms that sound like they belong in a surveying textbook.

Orthomosaic. Point cloud. Digital surface model. Digital terrain model. Elevation model.

They all come from mapping workflows, but they are not interchangeable. Each deliverable represents the site differently, answers a different type of question, and requires a different capture or processing method. Choosing the wrong output can leave your project team with an impressive-looking file that does not support the decision you actually need to make.

This guide explains the most common drone mapping deliverables in plain language, what each one is useful for, and what to ask before scheduling a flight.

It is intended as general education. Accuracy requirements, survey control, engineering use, and professional certification should always be discussed with the qualified professionals responsible for your project.

Start With the Decision, Not the File Type

The most important question is not, “Do we need a point cloud?”

It is, “What decision does the project team need to make?”

You may need to:

Measure an area or distance
Review current site conditions
Track construction progress
Compare the site against a previous flight
Estimate stockpile volume
Understand surface elevations
Document buildings, equipment, and vegetation
Create a visual reference for stakeholders
Provide data to an engineer or survey professional

Those are different objectives.

A project that only needs a current site overview may be well served by an orthomosaic. A team evaluating elevations may need a surface or terrain model. Someone working inside CAD or 3D software may require a point cloud.

The deliverable should follow the decision—not the other way around.

What Is an Orthomosaic?

An orthomosaic is a large, high-resolution aerial map created by combining many overlapping photographs.

A normal aerial photo contains perspective distortion. Objects closer to the camera may appear larger, and the image is taken from one viewpoint.

An orthomosaic is processed to correct much of that distortion and combine the individual images into one consistent, top-down view of the site.

The result looks similar to satellite imagery, but it can be significantly more detailed and captured specifically for the project.

An orthomosaic can help a project team:

Review the entire site in one image
Measure approximate distances and areas
Document staging and material locations
Compare current conditions with earlier flights
Mark utilities, access points, or work zones
Support owner and stakeholder updates
Create a visual record of project progress

For many construction teams, the orthomosaic is the most immediately understandable mapping deliverable because it resembles a familiar map while showing current site conditions.

Our Construction Drone Services can support visual site documentation and mapping workflows built around the project’s intended use.

What Is a Point Cloud?

A point cloud is a three-dimensional collection of data points representing the surfaces captured during a mapping project.

Each point has a position in space. When millions of those points are viewed together, they form a digital representation of the site, including the ground, buildings, equipment, stockpiles, vegetation, and other visible objects.

A point cloud is not a finished photograph.

It is a 3D dataset that can be viewed, measured, filtered, or imported into compatible design and analysis software.

Point clouds can support tasks such as:

Reviewing site geometry in three dimensions
Measuring heights and clearances
Evaluating structures and visible site features
Creating surface models
Supporting volumetric calculations
Comparing existing conditions with design information
Providing a base for certain CAD or modeling workflows

The usefulness of a point cloud depends heavily on density, accuracy, coordinate system, control methods, and the software being used by the receiving team.

Before requesting one, confirm what file format your engineer, surveyor, or project software requires.

What Is a Digital Surface Model?

A digital surface model, or DSM, represents the highest visible surface captured across the site.

That means the model may include:

Building roofs
Construction equipment
Stockpiles
Trees and vegetation
Vehicles
Temporary structures
The ground where it is visible

Think of a DSM as a digital blanket placed over everything the sensor can see from above.

A DSM is useful when the project team needs to understand the top surface of the site rather than the bare earth beneath it.

It may support:

Building and structure height review
Stockpile volume calculations
Solar or visibility studies
Surface drainage observations
Site obstruction review
Progress comparisons
Three-dimensional site visualization

Because a DSM includes buildings and vegetation, it should not automatically be treated as a bare-earth terrain model.

What Is a Digital Terrain Model?

A digital terrain model, or DTM, is intended to represent the underlying ground surface with above-ground objects removed or filtered out.

In simple terms:

A DSM shows the tops of trees, buildings, and equipment.
A DTM attempts to show the terrain beneath them.

A DTM may help support decisions involving:

Grading
Drainage
Cut-and-fill planning
Existing ground elevations
Slope analysis
Civil design coordination
Site preparation

Creating a dependable terrain model becomes more difficult when the ground is obscured by dense vegetation, structures, equipment, or materials.

That limitation matters.

Photogrammetry depends on what the camera can see. If the bare ground is hidden beneath trees or thick vegetation, the processing software cannot directly reconstruct a surface that was never visible in the photographs.

What Is a Digital Elevation Model?

Digital elevation model, or DEM, is a broader term for a digital representation of elevation.

Depending on the project, “DEM” may be used to describe a surface model, a terrain model, or another elevation-based dataset.

That makes the term easy to misunderstand.

When someone asks for a DEM, clarify what they actually need:

The elevation of the visible surface?
The bare-earth terrain?
A raster elevation file?
Contours?
A model for engineering software?
A general visualization?

Do not rely on the acronym alone.

Ask what the dataset will be used for and what format the receiving team expects.

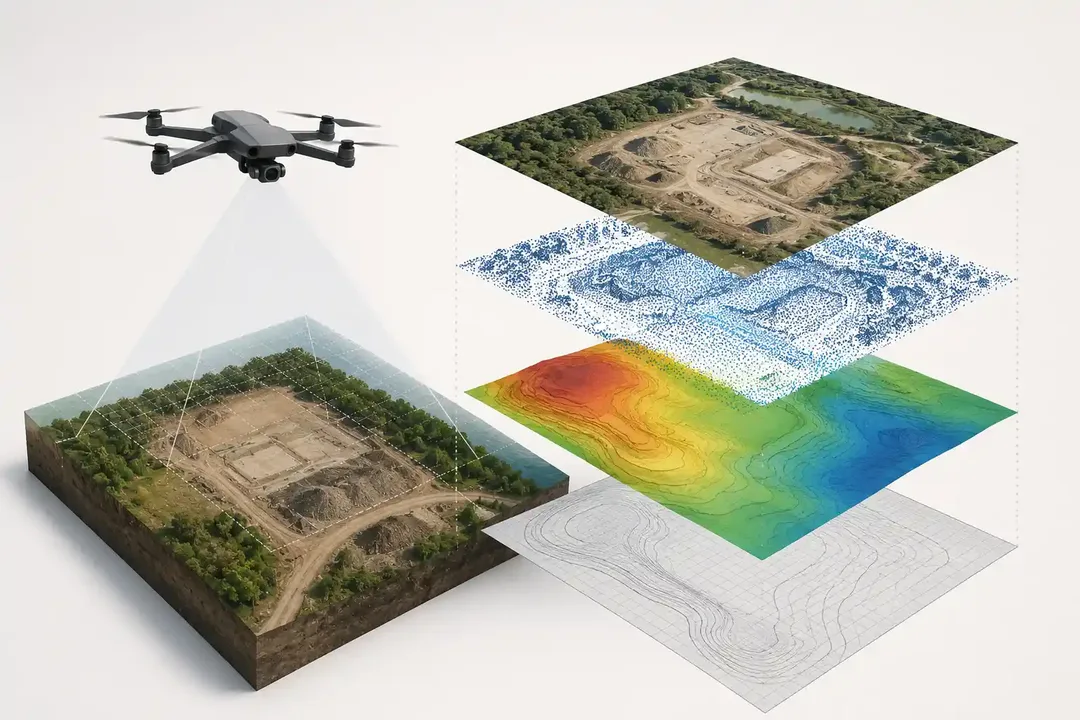

Which Deliverable Supports Which Decision?

A practical way to choose a deliverable is to match it directly to the project question.

“What does the entire site look like today?”

Start with an orthomosaic.

It provides a current, top-down visual record that is easy to share with owners, field teams, and stakeholders.

“How has the site changed since the last flight?”

Use repeatable orthomosaics, surface models, or both.

Consistent flight paths and processing methods make comparisons more useful over time.

“How much material is in this stockpile?”

A point cloud or digital surface model may support a volumetric workflow.

The project still needs a suitable base surface and clearly defined measurement boundaries.

“Where does the grade sit?”

A terrain or elevation model may be appropriate, depending on required accuracy, ground visibility, and project control.

If the result will influence engineering, payment, or legal decisions, discuss survey requirements before the flight.

“Can the engineering team work with the data in CAD?”

Ask the engineering team first.

They may require a point cloud, contours, surface file, coordinate reference system, specific file format, or documented accuracy standard.

“Do we just need better reporting?”

An orthomosaic and organized progress imagery may be enough.

Not every project needs the most complex dataset available.

Photogrammetry and LiDAR Are Not the Same Thing

Photogrammetry and LiDAR can both produce point clouds and three-dimensional models, but they collect data differently.

Photogrammetry uses overlapping photographs.

Processing software identifies common features across those images and calculates their positions in three-dimensional space. It can produce detailed orthomosaics, point clouds, surface models, textured models, and other visual deliverables when the site and capture conditions are suitable.

LiDAR uses laser pulses to measure distance.

A LiDAR sensor sends out pulses and calculates the position of surfaces based on the returning signal. Depending on the equipment, site, vegetation, and workflow, LiDAR may be better suited to certain terrain or infrastructure applications.

Neither method is automatically better for every project.

Photogrammetry is often well suited for:

High-resolution visual mapping
Orthomosaics
Visible surface documentation
Construction progress
Stockpile modeling
Sites with good lighting and visible ground
Textured three-dimensional models

LiDAR may be considered for projects involving:

Dense vegetation
Terrain beneath partial canopy
Low-texture surfaces
Specialized corridor work
Certain engineering or infrastructure requirements
Situations where the project specifically calls for laser-based data

Cascade Flight does not represent LiDAR as a current service offering in this article. The purpose here is to explain the difference so buyers can ask informed questions when comparing mapping methods.

Accuracy Depends on More Than the Drone

A mapping deliverable may look precise without meeting the accuracy requirements of the decision it supports.

Final accuracy can be affected by:

Flight altitude
Image overlap
Camera quality
Site texture
Vegetation
Lighting and shadows
Wind
Ground control points
RTK or PPK positioning
Coordinate systems
Processing methods
Quality checks
The accuracy of any reference data

That is why “survey-grade” should never be assumed from appearance alone.

Ask the provider:

What accuracy can reasonably be expected?
How will accuracy be checked?
Are ground control points required?
Will RTK or PPK be used?
What coordinate system will the data use?
Is the deliverable intended for visualization, measurement, design, or certified survey work?
Does a licensed survey professional need to be involved?

A professional-looking map and a legally certified survey are not the same product.

What to Ask Before Ordering Drone Mapping

Before booking a mapping project, share the intended use with both the drone provider and the professionals who will receive the files.

Useful questions include:

What decision will this data support?
Who will use the deliverable?
What software will they use?
What file format do they require?
What coordinate system should be used?
What level of accuracy is necessary?
Does the project require ground control?
Is the ground visible from above?
Will the flight need to be repeated later?
Does the work require oversight or certification by a licensed surveyor?

These questions can prevent expensive rework.

They also help distinguish between a simple visual mapping project and a dataset intended for engineering, design, payment, or regulatory use.

Choose the Simplest Deliverable That Solves the Problem

More data is not always better.

A point cloud may contain millions of measurements, but it is not useful if the project team only needs a clear visual update. A terrain model may be unnecessary if the goal is simply to show staging and progress. An orthomosaic may be easy to understand but insufficient for a decision involving precise elevations.

The right output is the one that supports the decision without creating unnecessary cost or complexity.

Cascade Flight provides professional Commercial Drone Services and Construction Drone Services for visual documentation, progress tracking, aerial imagery, and project-specific mapping needs.

We do not want to sell you a deliverable simply because it sounds technical.

Not sure what you need? Talk to us, and we can help you define the project before the flight is planned.
